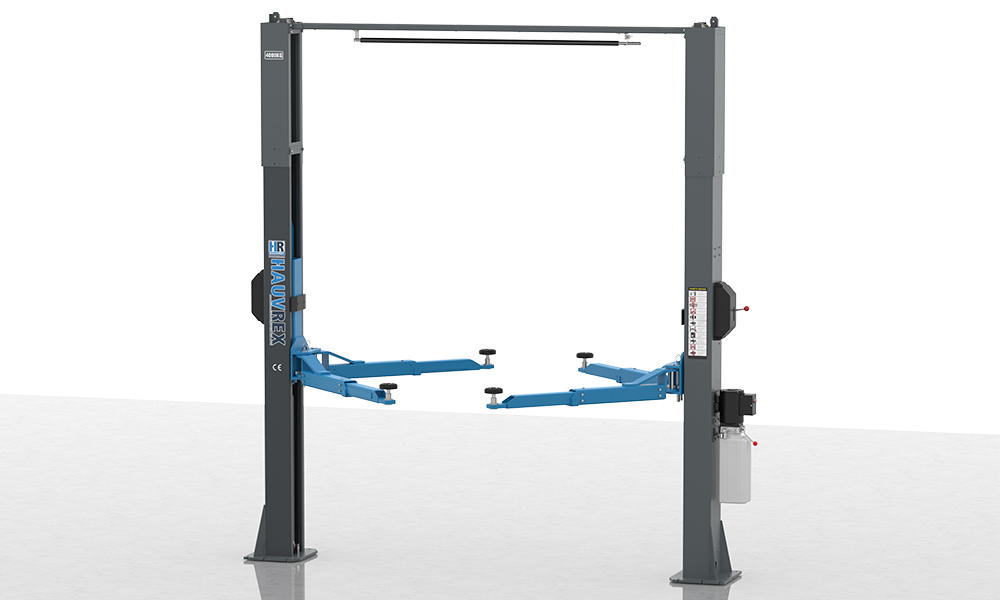

♦ Baseless lift, allows easy access into the working area.
|
|||
|
♦ Single-point mechanical lock release.
|
|||
|
♦ Two-stage elbow type arms and two-stage straight arms provide asymmetric lifting of vans and off-road vehicles.
|
|||
|
♦ Arms suitable for quick drop-in extensions and other lifting accessories.
|
|||
|
♦ Automatic arm locking during lifting and automatic unlocking when the arm reaches the floor.
|
|||
|
♦ Equipped with safety valve to prevent overloading and in case of hydraulic pipe fracture.
|
|||
|
♦ Self-controlled lowering speed.
|
|||
|
♦ Mechanical safety latch with automatic engagement ensuring maximum safety when lift is in standing position.
|
|||
|
♦ Overhead safety cut off.
|
|||
|
♦ Rubber door guards protect vehicle from door damage.
|
|
|

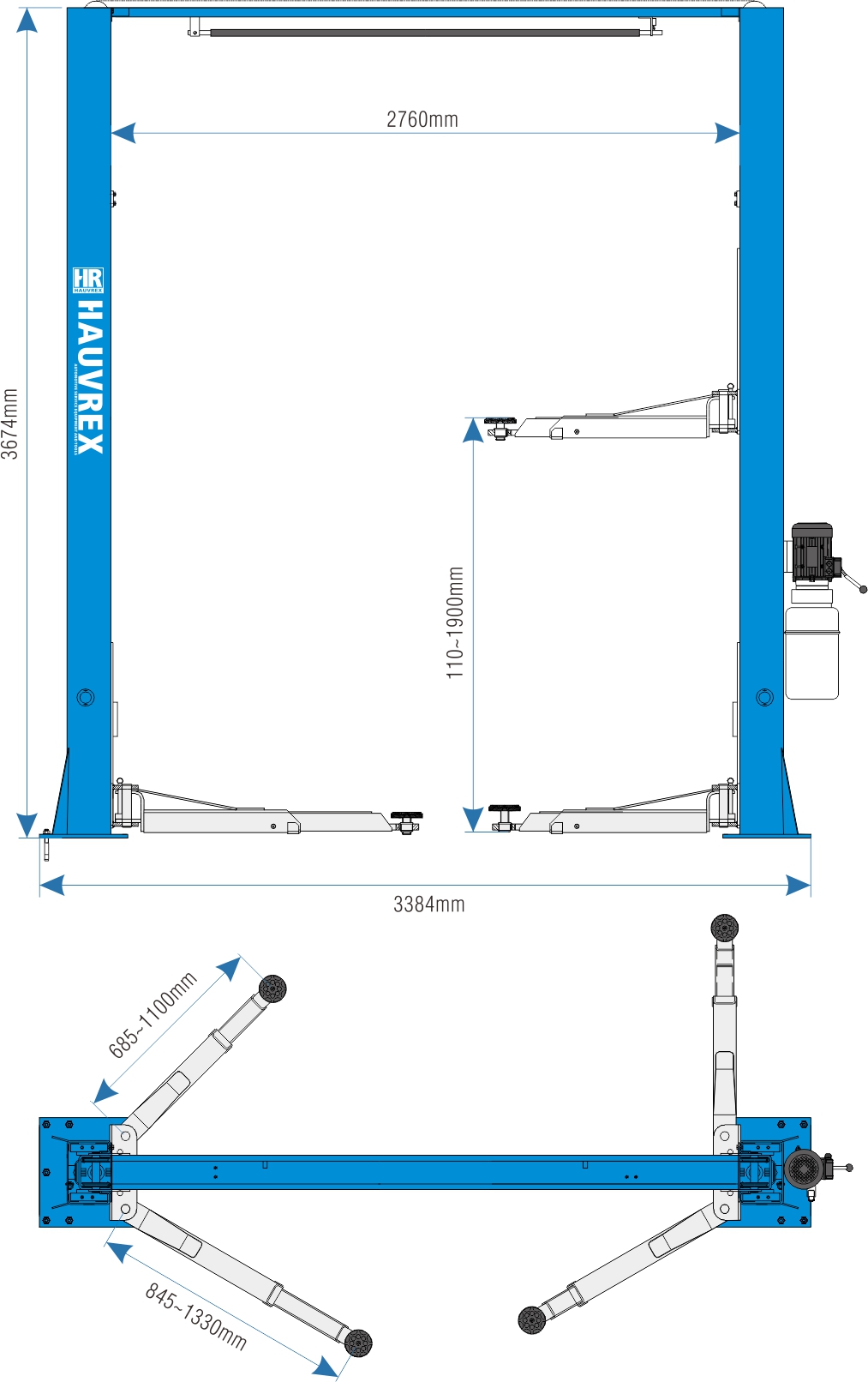

HTL3140S |
HTL3145S |
|
Lifting Capacity |
4000kg |
4500kg |
|
Min. Height |
110mm |
110mm |
|
Max. Lifting Height |
1900mm |
1900mm |
|
Overall Height |
3674mm |
3674mm |
|
Overall Width |
3384mm |
3384mm |
|
Width between Posts |
2760mm |
2760mm |
|
Short Arm Length |
685~1100mm |
685~1100mm |
|
Long Arm Length |
845~1330mm |
845~1330mm |
|
Lifting/Lowering Time |
55Sec./45Sec. |
55Sec./45Sec. |
|
Motor Power |
2.2kW |
2.2kW |
|
Power Supply |
220V/50Hz/1Ph 380V/50Hz/3Ph |
220V/50Hz/1Ph 380V/50Hz/3Ph |
