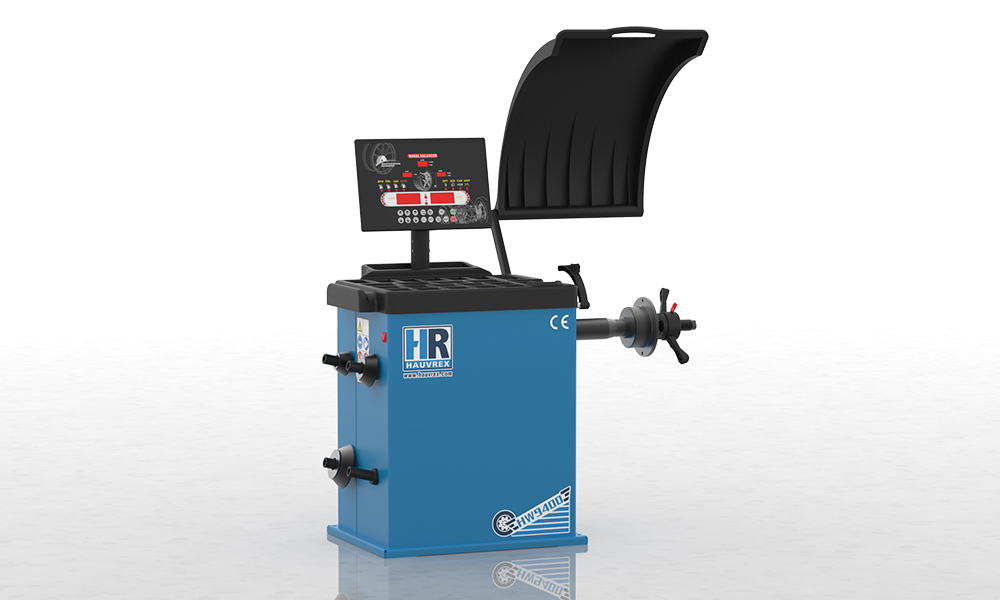

HW9400 | Automatic Car Wheel Balancer
♦ Electronic microprocessor controlled wheel balancer for balancing car, motorcycle and light industrial vehicle wheels.
♦ Integrated conspicuous LED touch panel display.
♦ Automatic distance and diameter data entry.
♦ Automatic start by lowering wheel guard.
♦ Automatic braking of the wheel after measurement.
♦ Pedal brake to keep the wheel stopped during weight positioning.
♦ Wheel locking with quickfit nut.
♦ Self-calibration and self-diagnosis programs.
♦ Wheel dimensions shown in inches or millimeters.
♦ Indication of unbalance in grams or ounces.
♦ Alu programs and motorcycle programs.
♦ Optimization mode for rim/tire matching.
Technical Data Details Overall Dimension Optional parts

Rim Diameter

10"~24"

Rim Width

1.5"~16"

Max. Wheel Weight

70kg

Max. Wheel Diameter

1000mm

Balancing Accuracy

+/-1g

Rotation Speed

200rpm

Measuring Time

8 Sec.

Motor Power

250W

Noise Level

<70 db

Power Supply

220V/50Hz/1Ph
