HC8530L | Automatic Tilt Column Car Tire Changer
♦ Automatic tyre changer with pneumatic tilt-back tower.
♦ Robust Ø41mm hexagon shaft.
♦ Simultaneous pneumatic locking of the horizontal and vertical arms with automatic positioning of the head in the optimal work position.
♦ Tool head with interchangeable plastic parts for rim protection.
♦ Pneumatic tilting arm support column featuring high torsional rigidity in all operation positions.
♦ Clockwise and anticlockwise rotation of the turntable through electric motor.
♦ The pedal assembly can be removed allowing easy servicing.
♦ Protection kit for bead breaker shoe, demounting head and clamping jaw comes standard.
♦ Independent tire inflation bay with inflation tube, pressure gauge and pressure release button.
♦ Complete with lubrication filter and pressure regulator.

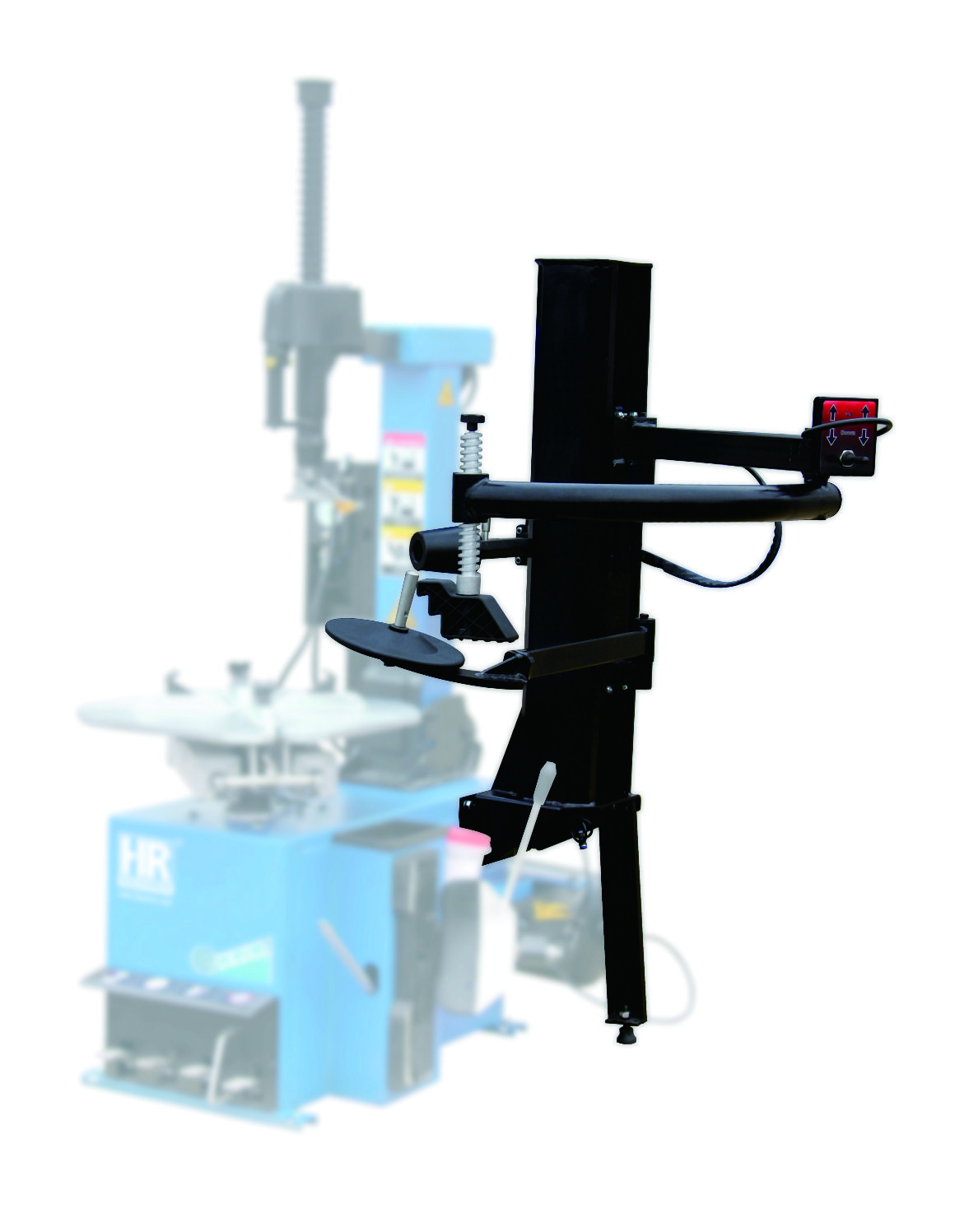

DP30 helper arm:
» Rotating arm with bead pressing block for drop-center rims, to assist fitting and removal of tyres, particularly low profile tyres.
» Tyre lifting disk to aid in demounting difficult tyre and wheel combinations.
» Mid-position roller helps loosening of the second bead.
Technical Data Details Overall Dimension Optional parts

Rim Clamping Outside

12"~28"

Rim Clamping Inside

10"~24"

Max. Wheel Diameter

1150mm

Max. Wheel Width

3"~15"

Beadbreaking Force

2700kg

Operation Pressure

8~10 bar

Motor Power

1.0kW/1.5kW

Power Supply

380V/50Hz/3Ph

220V/50Hz/1Ph
