Metric

America

Lifting Capacity

1,200kg

2,643lbs

Min. Height

570mm

22-7/16"

Max. Lifting Height

1,920mm

75-9/16"

Platform Length

1,300mm

51-3/16"

Platform Width

770mm

30-5/16"

Ground Clearance

140mm

5-9/16"

Motor Performance

0.75kW

0.75kW

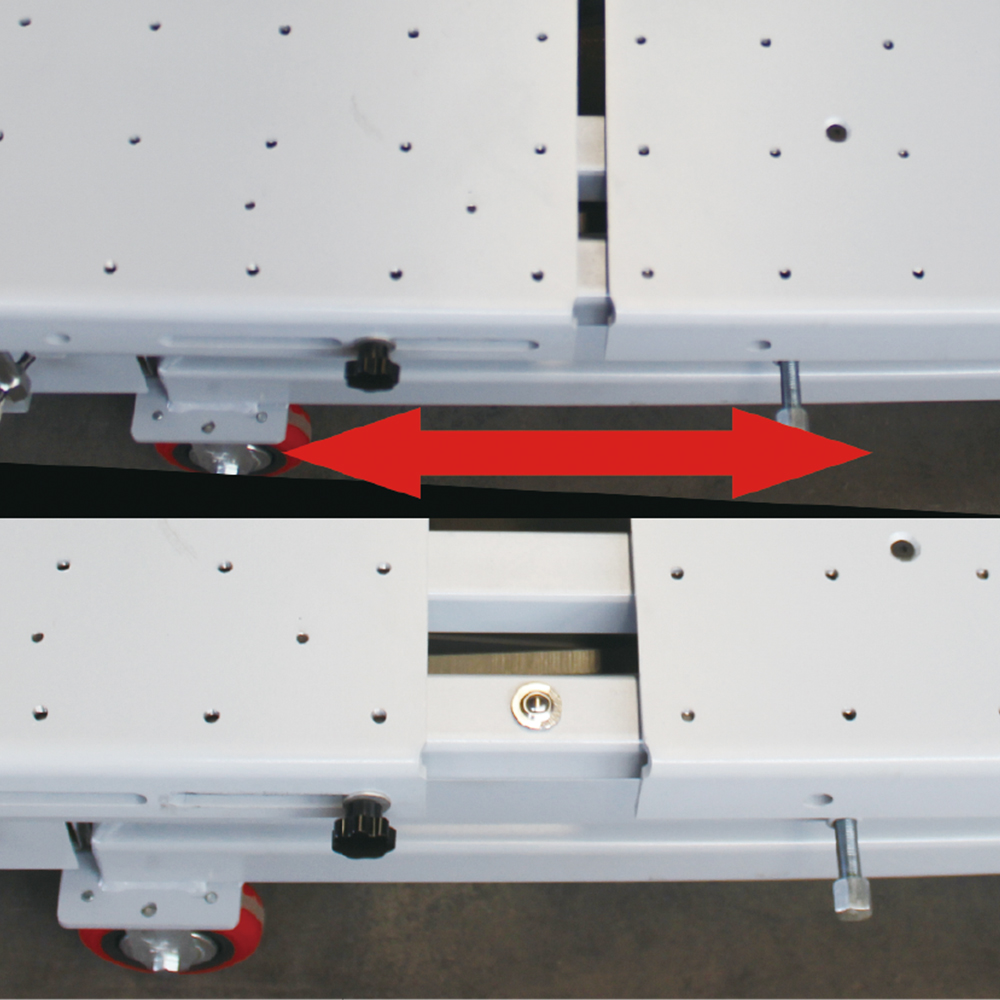

X Axel Direction Movement

50mm

2"

Y Axel Direction Movement

50mm

2"

Platform Tilting X Axel

5°

5°

Platform Tilting Y Axel

5°

5°

Total Weight

2.2kW

2.2kW

Lifting/Lowering Time with load

60 Sec./40 Sec.

60 Sec./40 Sec.

Power Supply

220V/50Hz/1Ph

110V/60Hz/1Ph
