Metric |
American |
|
Lifting Capacity |
4000kg |
9000lbs |
|
Min. Height |
110mm |
4-11/32" |
|
Max. Lifting Height |
1900mm |
74-13/16" |
|

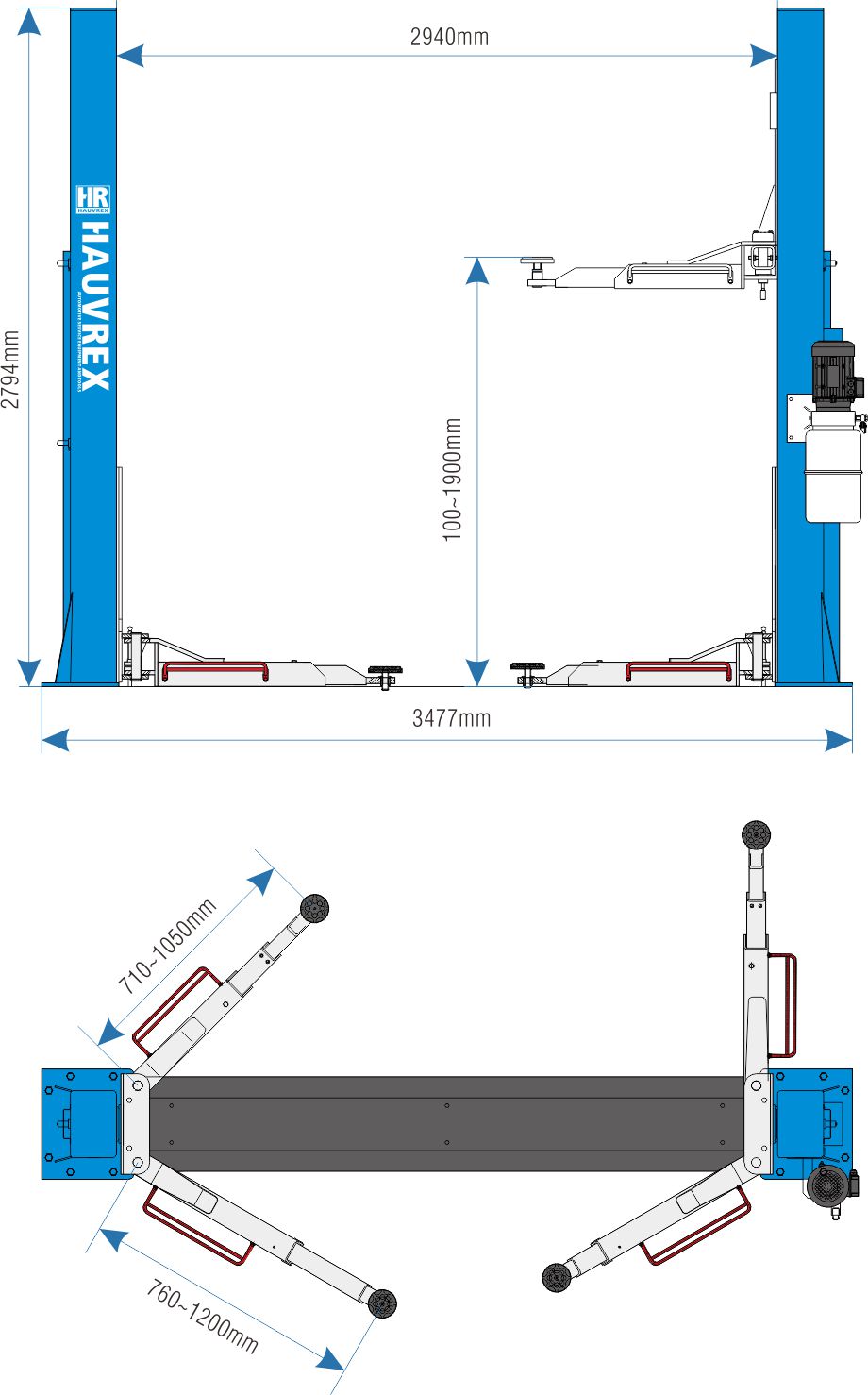

Overall Height |
2794mm |
110" |
|
Overall Width |
3477mm |
136-7/8" |
|
Width between Posts |
2940mm |
115-3/4" |
|
Short Arm Length |
710~1050mm |
27-31/32"~41-11/32" |
|
Long Arm Length |
760~1200mm |
29-15/16"~47-1/4" |
|
Lifting/Lowering Time |
55Sec./45Sec. |
55Sec./45Sec. |
|
Motor Power |
2.2kW |
2.2kW |
|
Power Supply |
220V/50Hz/1Ph 380V/50Hz/3Ph |
220V/60Hz/1Ph 110V/60Hz/1Ph |
