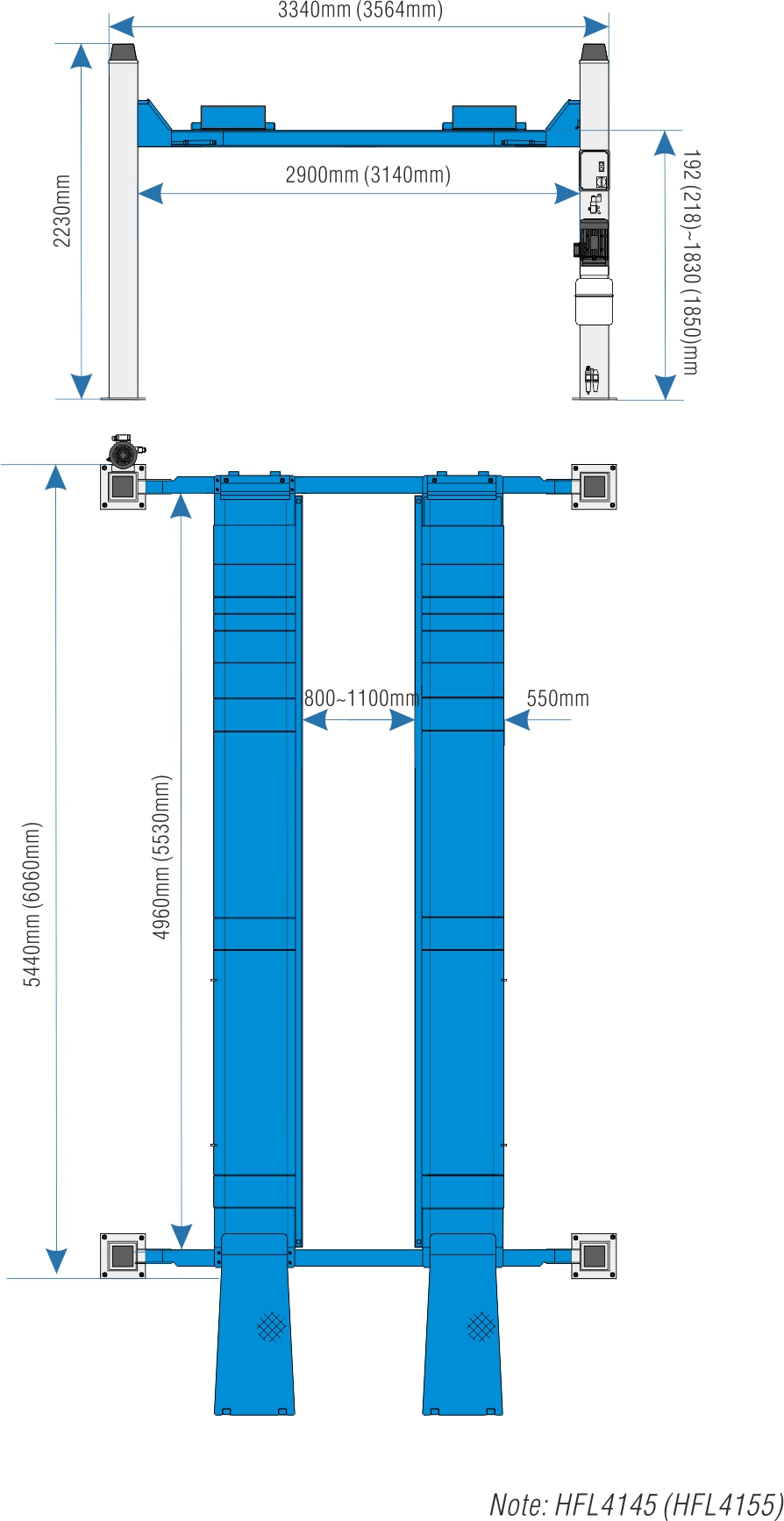

HFL4145/4155

America

Lifting Capacity

4500kg/5500kg

10000lbs/12000lbs

Min. Height

192mm/218mm

7-9/16"/8-19/32"

Max. Lifting Height

1830mm/1850mm

72-1/32"/72-27/32"

Overall Length

5440mm/6060mm

214-3/16"/238-19/32"

Overall Width

3340mm/3564mm

131-1/2"/140-5/16"

Overall Height

2230mm

87-25/32"

Runway Length

4960mm/5530mm

195-9/32"/217-23/32"

Runway Width

550mm

21-21/32"

Width between Posts

2900mm/3140mm

119-3/16"/123-5/8"

Width between Platforms

800~1100mm

31-1/2"~43-5/16"

Lifting/Lowering Time

55 Sec./45 Sec.

55 Sec./45 Sec.

Motor Power

2.2kW/3.0kW

2.2kW/3.0kW

Power Supply

220V/50Hz/1Ph

380V/50Hz/3Ph

220V/60Hz/1Ph

110V/60Hz/1Ph
