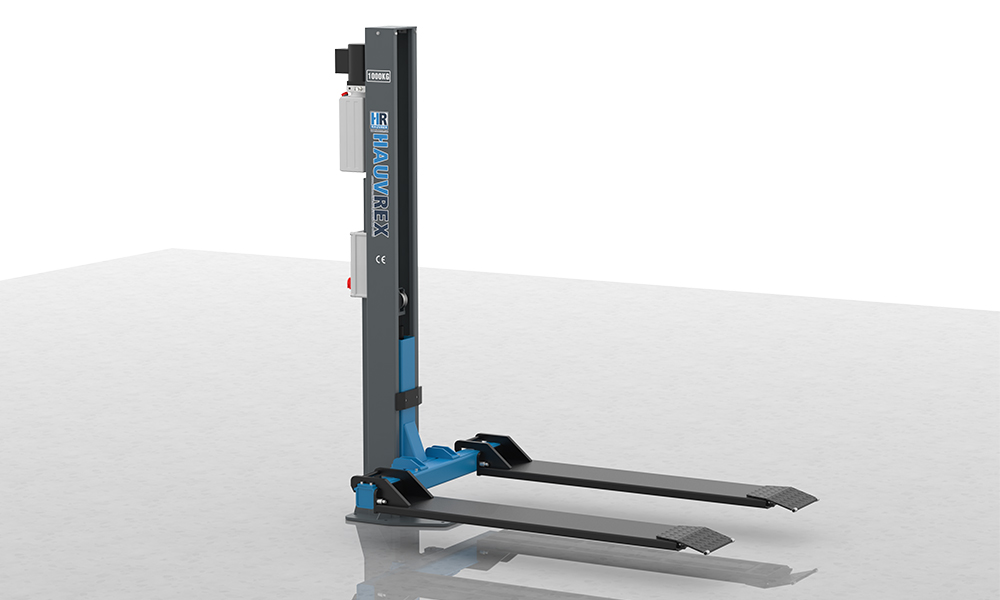

HSL1010 | Golf Cart Lift
24V low voltage control box with UP, DOWN, LOCK button and main power switch
Adjustable platform distance for different wheel track vehicles
Drive ramps can be used as wheel stopper while it is lifted
Anti-collision door protection rubber on carriage
2.2kW power pack with black motor

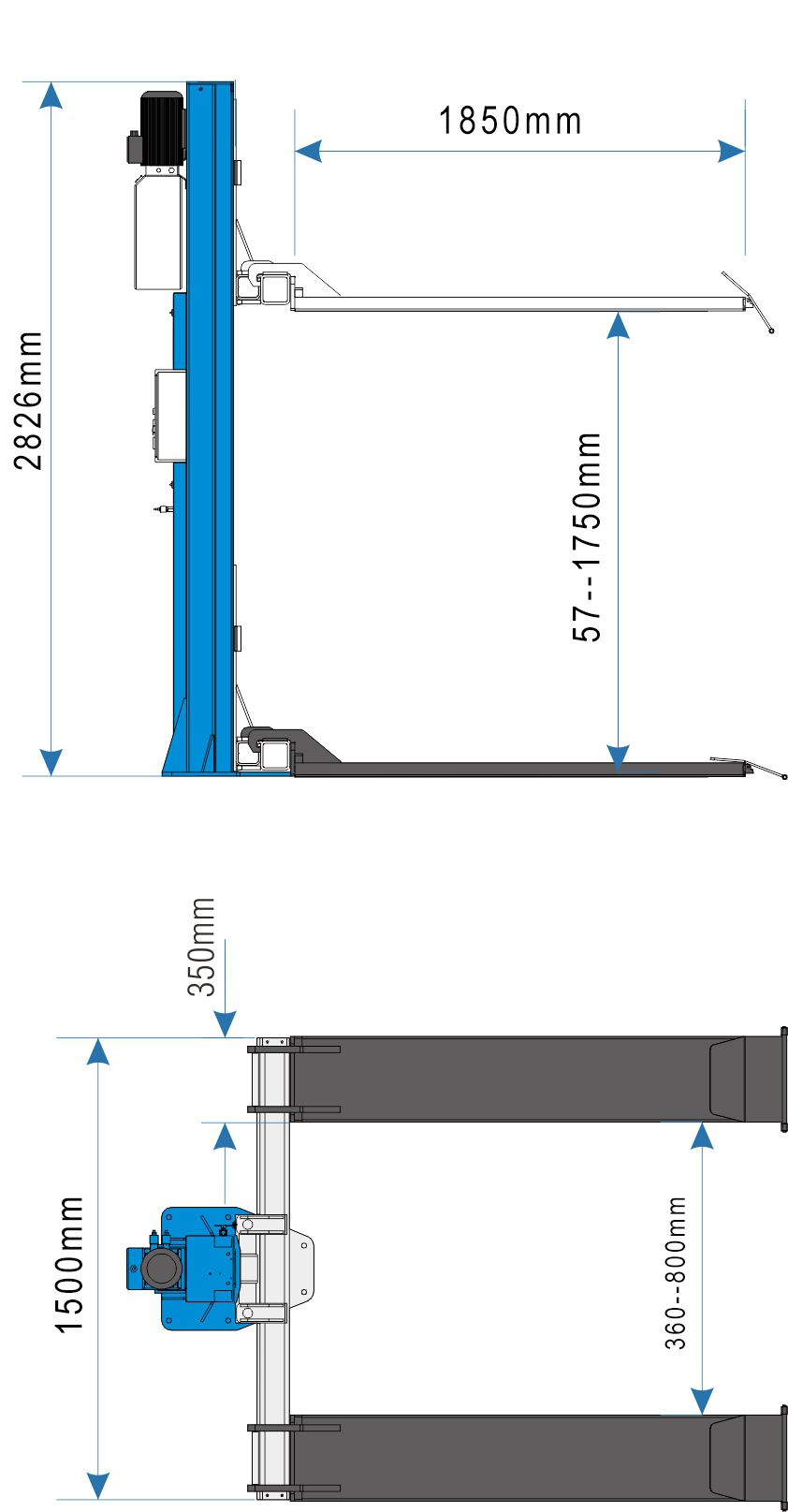

Technical Data Details Overall Dimension Optional parts

Metric

American

Lifting Capacity

1000kg

2000lbs

Min. Height

57mm

2-1/4"

Max. Lifting Height

1,750mm

70-7/8"

Overall Height

2,826mm

102-3/8"

Overall Width

2,396mm

100"

Platform Width

350mm

13-3/4"

Platform Length

1,850mm

72-13/16"

Wdith between Platforms

360~800mm

14-3/16"~31-1/2"

Lifting/Lowering Time

35Sec./25Sec

35Sec./25Sec

Motor Power

2.2kW

2.2kW

Power Supply

220V/50Hz/1Ph

380V/50Hz/3Ph

220V/60Hz/3Ph
110V/50Hz/1Ph
