Metric |
American |
|
Lifting Capacity |
3500kg |
7700lbs |
|
Min. Height |
105mm |
4'1/8" |
|
Max. Lifting Height |
1930mm |
76' |
|

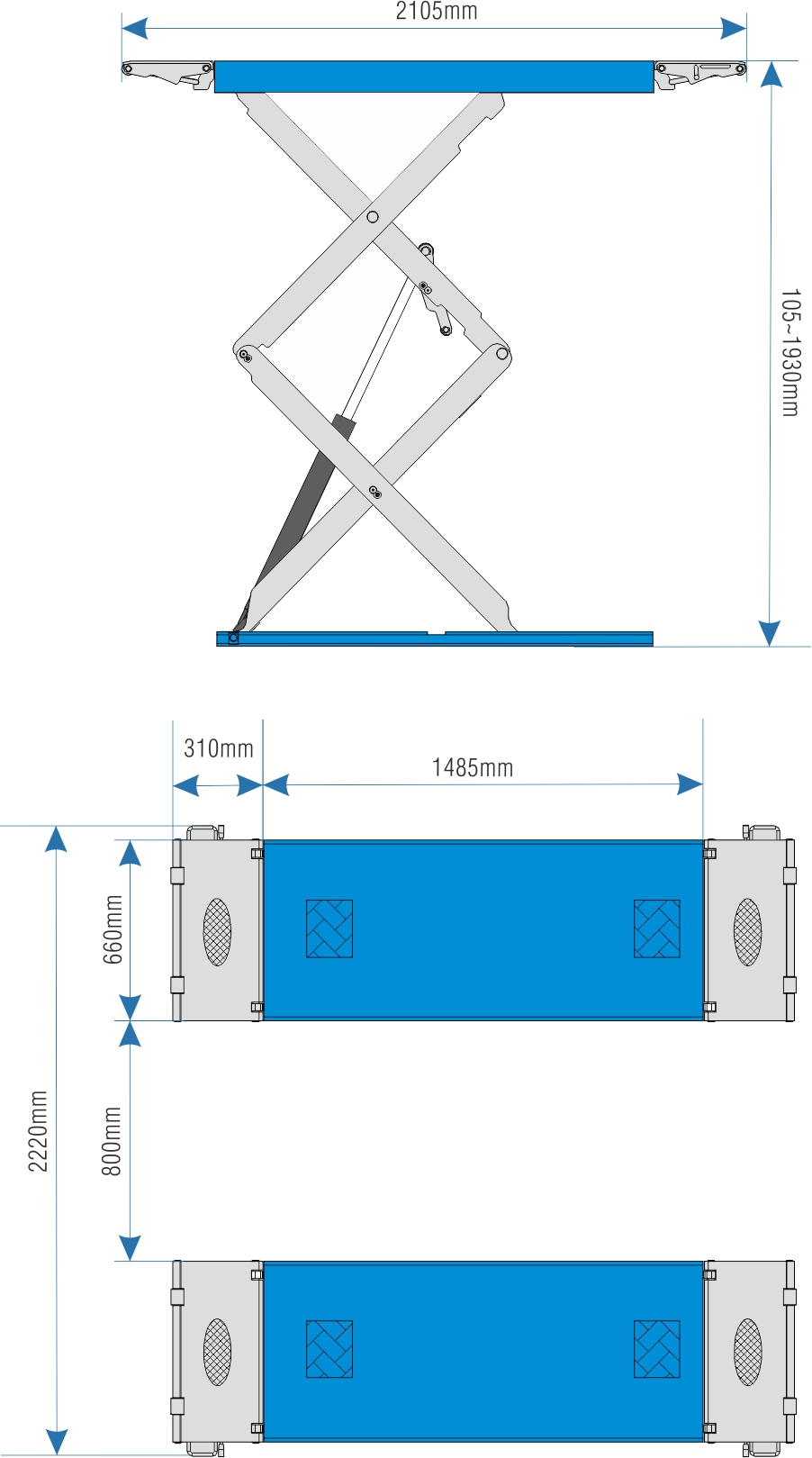

Platform Length |
1485~2105mm |
58-1/2"~82-13/16" |
|
Platform Width |
660mm |
26' |
|
Distance between Platforms |
800mm |
31-1/2" |
|
Air Supply |
Not needed |
Not needed |
|
Lifting/Lowering Time |
55 Sec./45 Sec. |
55 Sec./45 Sec. |
|
Motor Power |
2.2kW |
2.2kW |
|
Power Supply |
220V/50Hz/1Ph 380V/50Hz/3Ph |
220V/60Hz/1Ph 110V/60Hz/1Ph |
