HXL6235 | Portable Mid-rise Scissor Lift

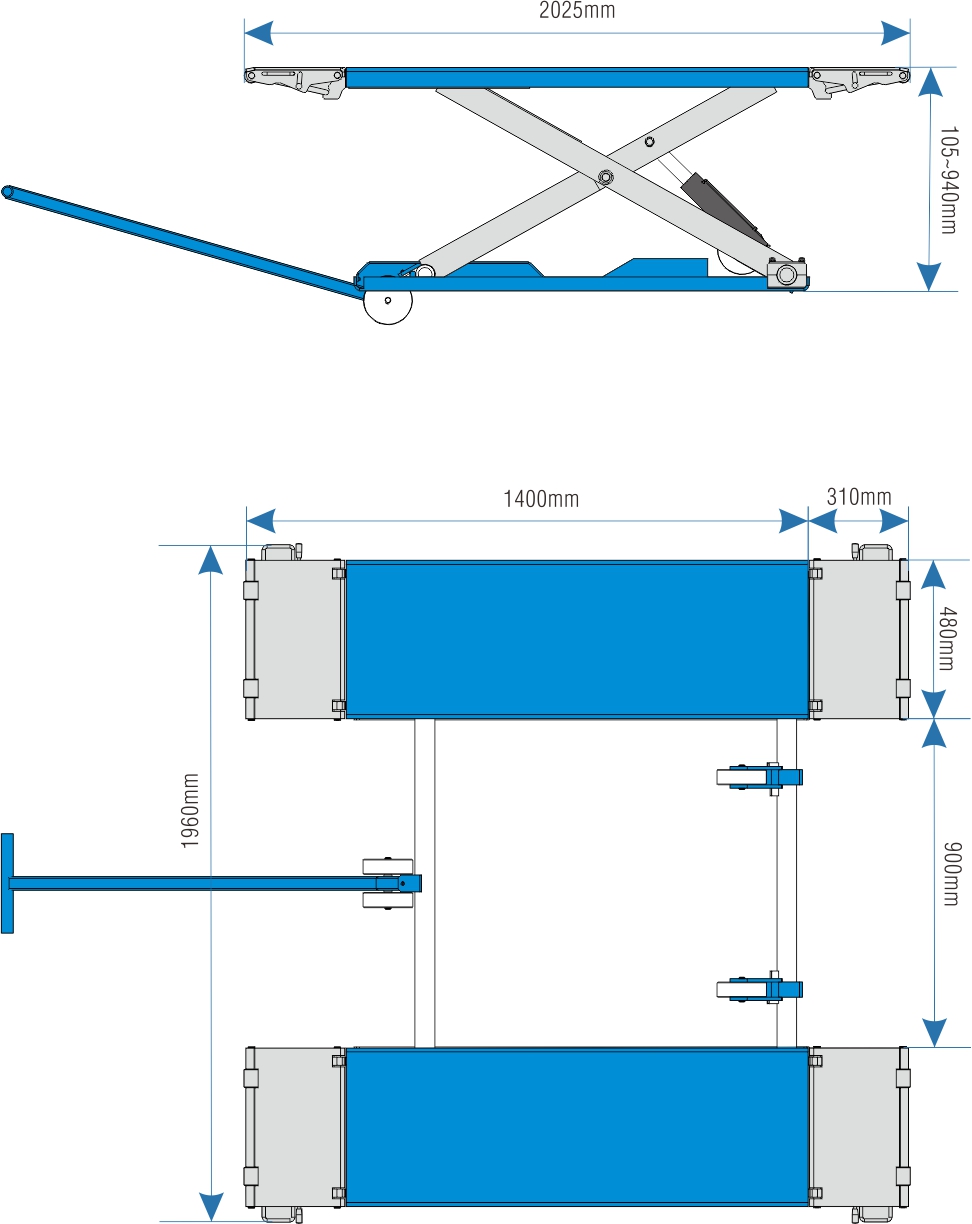

Technical Data Details Overall Dimension Optional parts

Metric

American

Lifting Capacity

3500kg

7700lbs

Min. Height

105mm

4-1/8"

Max. Lifting Height with Adaptors

940mm

37"

Platform Length

2025mm

79-23/32"

Platform Width

1960mm

77-5/32"

Air Supply

6~8kg/cm²

85~113.6 psi

Lifting/Lowering Time

55 Sec./45 Sec.

55 Sec./45 Sec.

Motor Power

2.2kW

2.2kW

Power Supply

220V/50Hz/1Ph

380V/50Hz/3Ph

220V/60Hz/1Ph

110V/60Hz/1Ph
