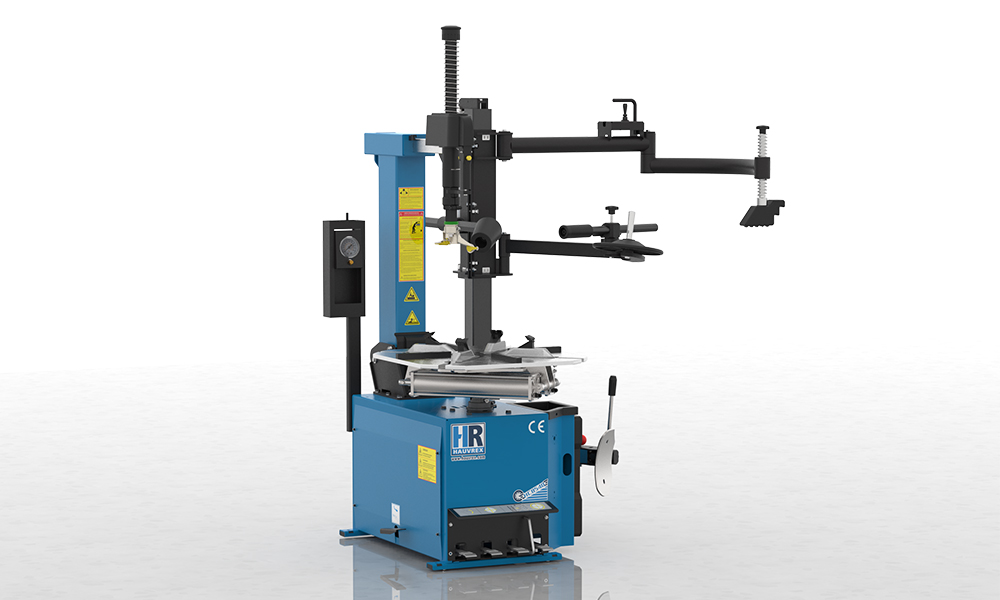

HC8540 | Tire Changer
♦ Automatic tyre changer with pneumatic tilt-back tower.
♦ Robust Ø41mm hexagon shaft.
♦ Simultaneous pneumatic locking of the horizontal and vertical arms with automatic positioning of the head in the optimal work position.
♦ Tool head with interchangeable plastic parts for rim protection.
♦ Pneumatic tilting arm support column featuring high torsional rigidity in all operation positions.
♦ Clockwise and anticlockwise rotation of the turntable through electric motor.
♦ The pedal assembly can be removed allowing easy servicing.
♦ Protection kit for bead breaker shoe, demounting head and clamping jaw comes standard.
♦ Independent tire inflation bay with inflation tube, pressure gauge and pressure release button.
♦ Complete with lubrication filter and pressure regulator.
DP60 helper arm:
» Rotating arm with bead pressing block for drop-center rims, to assist fitting and removal of tyres, particularly low profile tyres.
» Tyre lifting disk to aid in demounting difficult tyre and wheel combinations.
» Dual sliding mid-position rollers help loosening of the second bead more easily.
технические данные подробности общий размер факультативных частей

Диаметр дисков - снаружи

12"~28"

Диаметр дисков - изнутри

10"~24"

Макс. диаметр колеса

1150mm

Ширина колеса

3"~15"

Усилие отрыва борта шины

2700 кг

Рабочее давление воздуха

8~10 бар

Потребляемая мощность

1.0 кВт/1.5 кВт

Электропитание

380В/50Гц/3Ф.

220В/50Гц/1Ф.
