HC8100
Inicio > Productos > Desmontadoras > Para Moto
  • 1

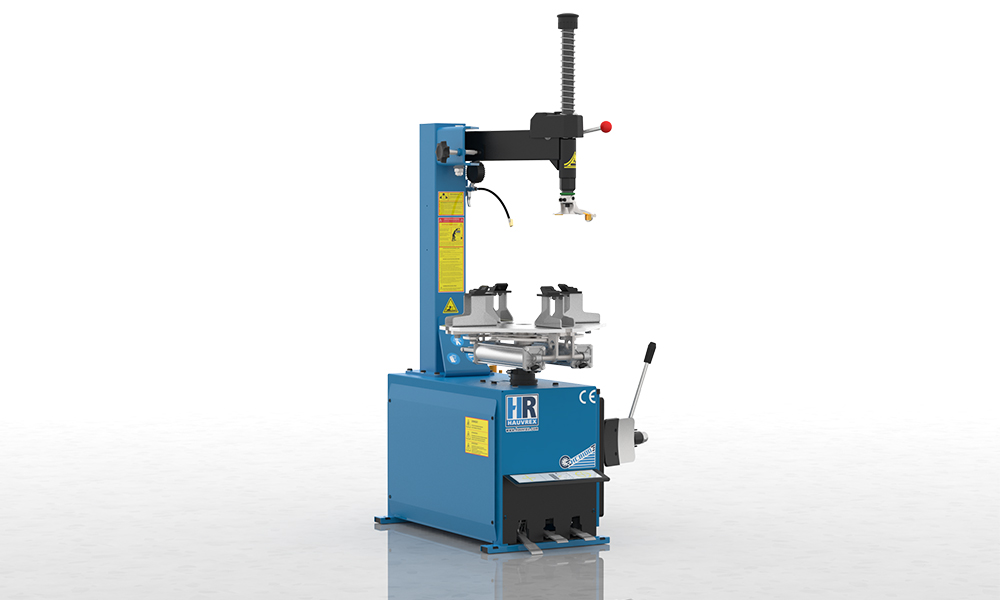

HC8100 | Desmontadora
♦ Specially designed for tires of two and four wheel motorcycle, scooters and ATV’s.
♦ Swing horizontal arm with Ø36mm hexagon shaft.
♦ Mechanical locking and vertical adjustment of mounting arm.
♦ Special tool head designed specially for easy mounting and dismounting of motorcycle tires of all sizes.
♦ Interchangeable plastic inserts on tool head protect rims from damage.
♦ Self-centering four-jaws with double pneumatic cylinder for secure clamping of all rim types.
♦ Powerful clamping cylinders provide uniform clamping pressure.
♦ Clockwise and anticlockwise rotation of the turntable through electric motor.
♦ The pedal assembly can be removed allowing easy servicing.
♦ Inflation gun with pressure gauge unit and pressure release button.
♦ The shape of the bead breaker blade will easily break the bead of small, narrow and standard motorcycle tires.
Datos técnicos Detalles Dimensión total Piezas opcionales

Rango de sujeción de la llanta (externo)

9"~18"

Rango de sujeción de la llanta (interno)

8"~17"

Diámetro máximo de la rueda

960mm

Anchura máxima de la rueda

3"~15"

Fuerza de destalonamiento

2700kg

Alimentación neumática

8~10 bar

Potencia

0.75kW/1.1kW

Fuente de alimentación

380V/50Hz/3Ph

220V/50Hz/1Ph
