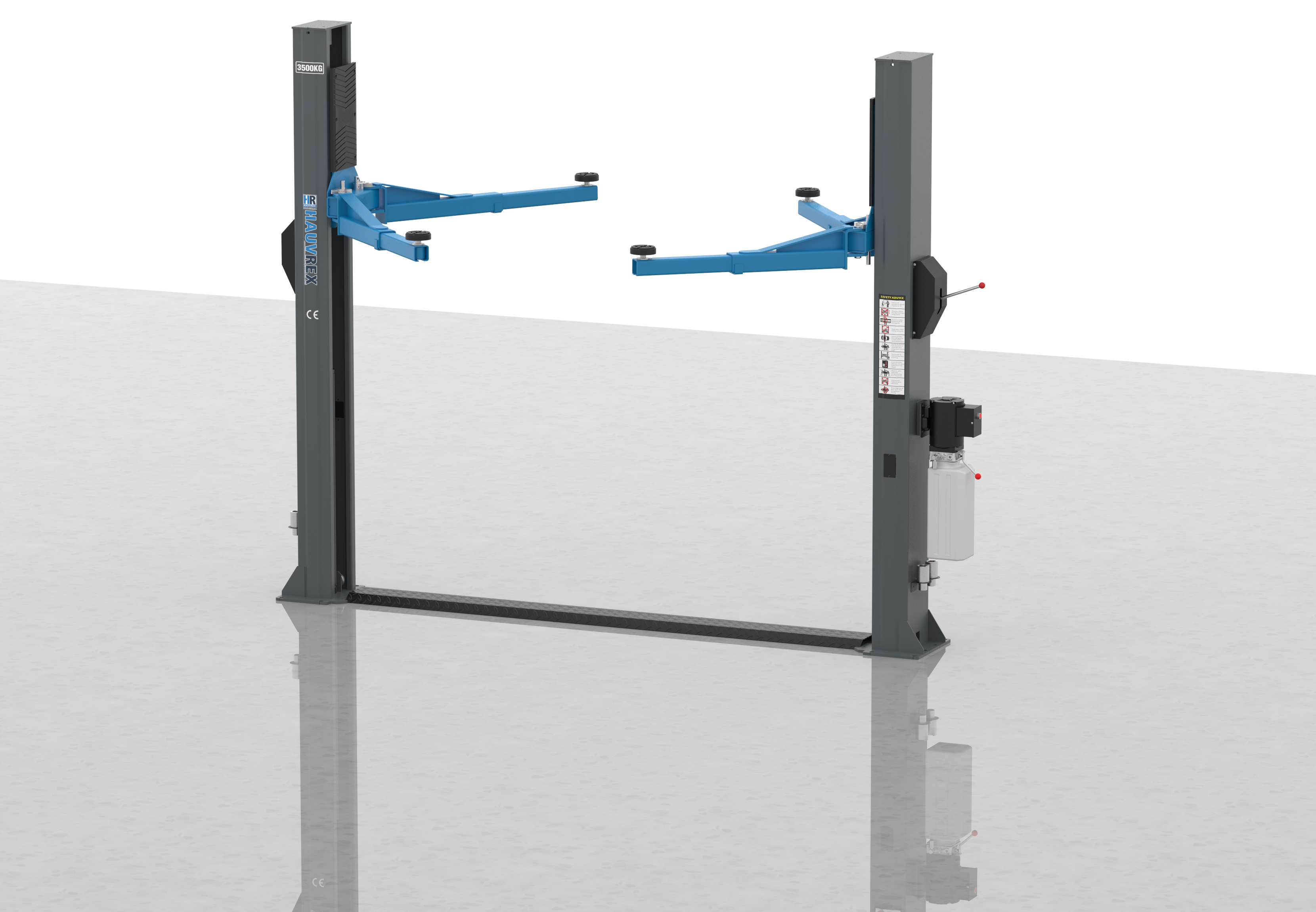

HTL2035S |
|
Lifting Capacity |
3500kg |
|
Min. Height |
115mm |
|
Max. Lifting Height |
1900mm |
|
Overall Height |
2793mm |
|
Overall Width |
3342mm |
|
Width between Posts |
2812mm |
|

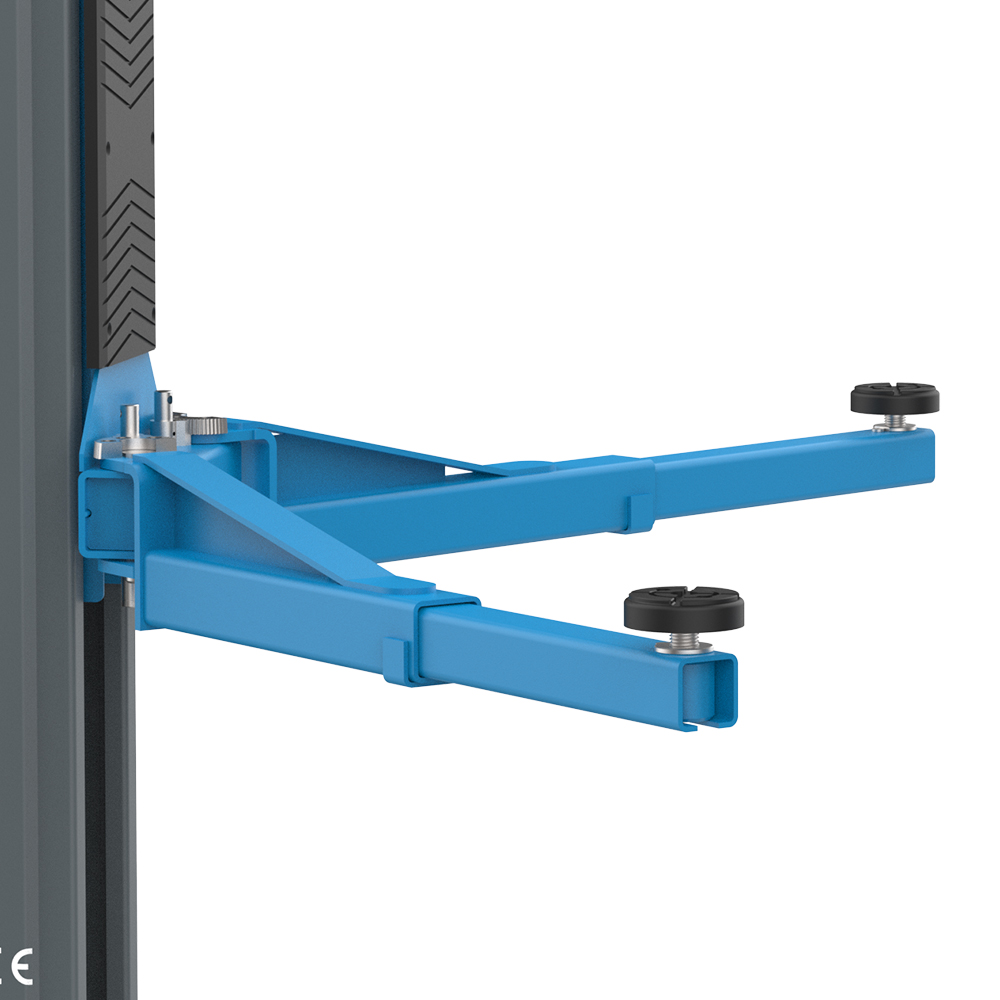

Short Arm Length |
685~1050mm |
|
Long Arm Length |
785~1235mm |
|
Lifting/Lowering Time |
55Sec./45Sec. |
|

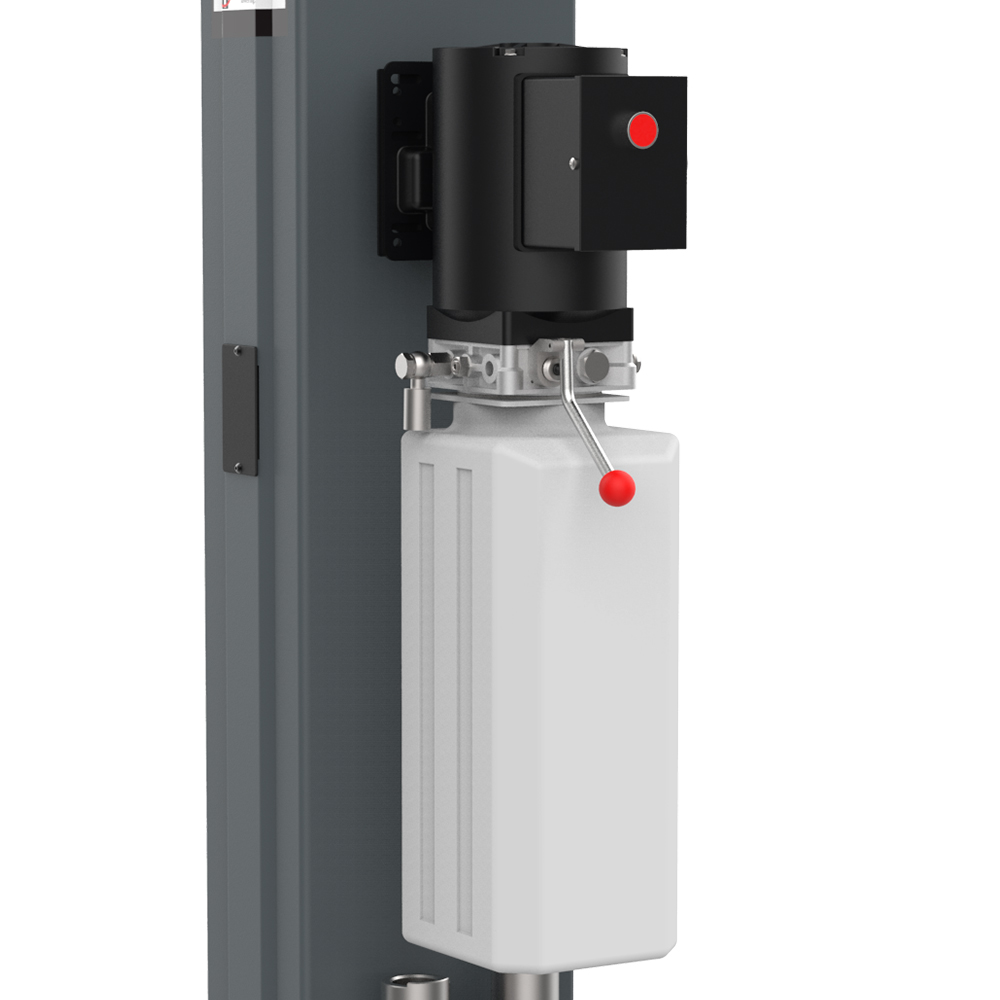

Motor Power |
2.2kW |
|
Power Supply |
220V/50Hz/1Ph 380V/50Hz/3Ph |
