HXL6945WX | HXL6955WX

Home > Products > Car Lifts > Scissor Lifts > Alignment Scissor Lifts

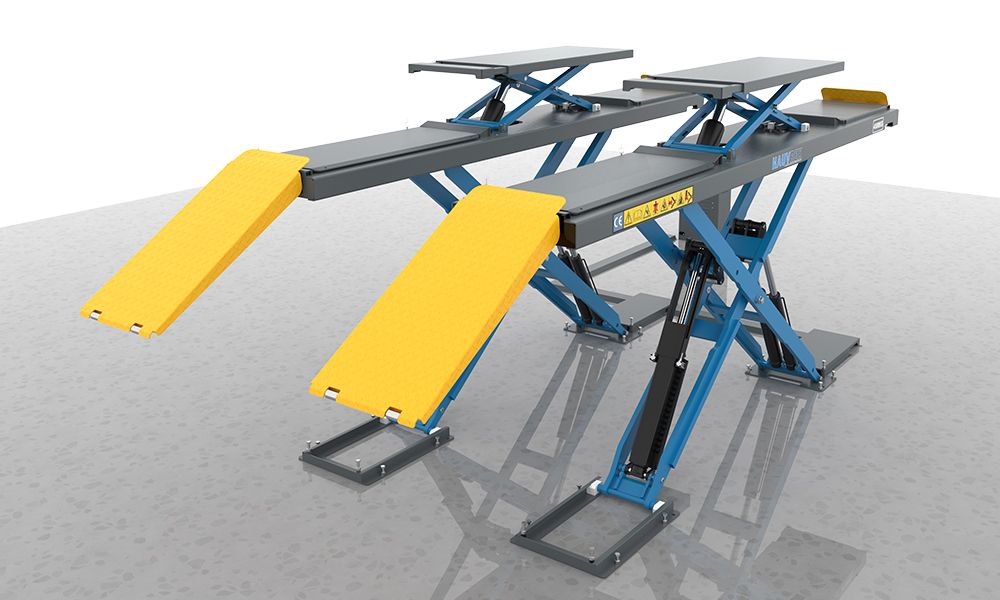

HXL6945WX | HXL6955WX | Low-profile Alignment Scissor Lift

♦ No cross rails or torsion bars between lifting platforms (for maximum accessibility in the working area).

♦ Audible alarm during the final lowering phase.

♦ All pivot points made with self lubricating bushings for long life.

♦ Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is in standing position.

♦ Hydraulic leveling system by means of a synchronization device assures constantly level lifting platforms regardless of weight distribution.

♦ Built-in wheel free lift with adjustable extensions to optimise vehicle loading.

♦ Wheel free lift allows a better access to vehicle underside and all operations requiring wheel free situations (e.g. change of tyres, brake and suspensions overhaul, etc…)

♦ Platforms for total wheel alignment, with front turning plates location and rear slip plates.

♦ Base plates with leveling system to ease installation.

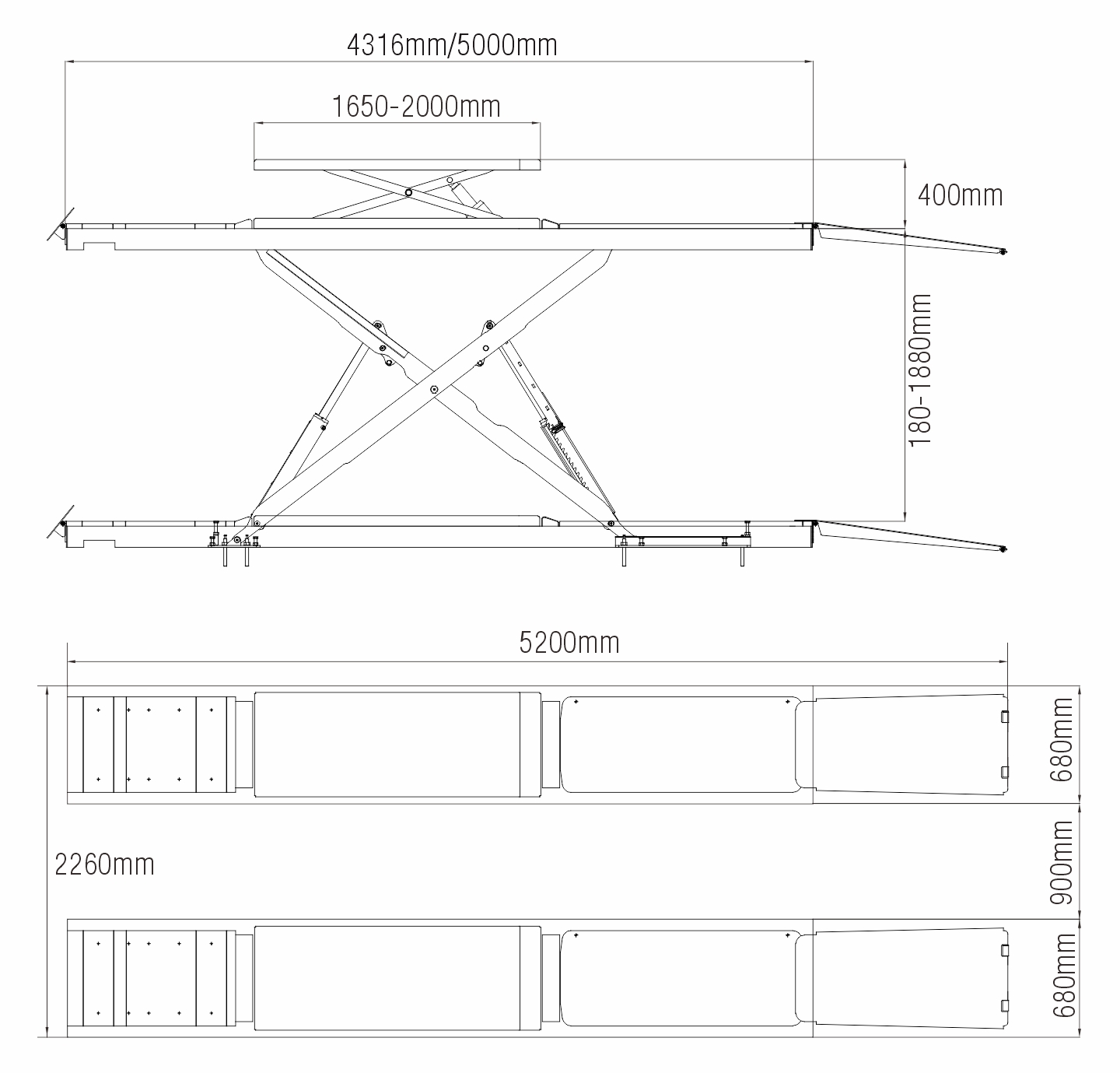

Model	HXL6945WX	HXL6955WX
Main Lift
Lifting Capacity	4500kg	5500kg
Max. Lifting Height	1880mm	1880mm
Min. Height	180mm	180mm
Platform Length	4316mm	5000mm
Platform Width	680mm	680mm
Distance between Platforms	900mm	900mm
Wheel Free Lift
Lifting Capacity	3000kg	3000kg
Max. Lifting Height	400mm	400mm
Platform Length	1650~2000mm	1650~2000mm
Power Supply	220V/50Hz/1Ph 380V/50Hz/3Ph	220V/50Hz/1Ph 380V/50Hz/3Ph
Air Supply	6-8kg/m³	6-8kg/m³
Lifting/Lowering Time	Less than 60S	Less than 60S
Motor Power	2.2kW	3.0kW
