Model |
HXL6745W |
HXL6755W |
|
Lifting Capacity |
4500kg |
5500kg |
|
Max. Lifting Height |
2180mm |
2180mm |
|
Min. Height |
330mm |
330mm |
|

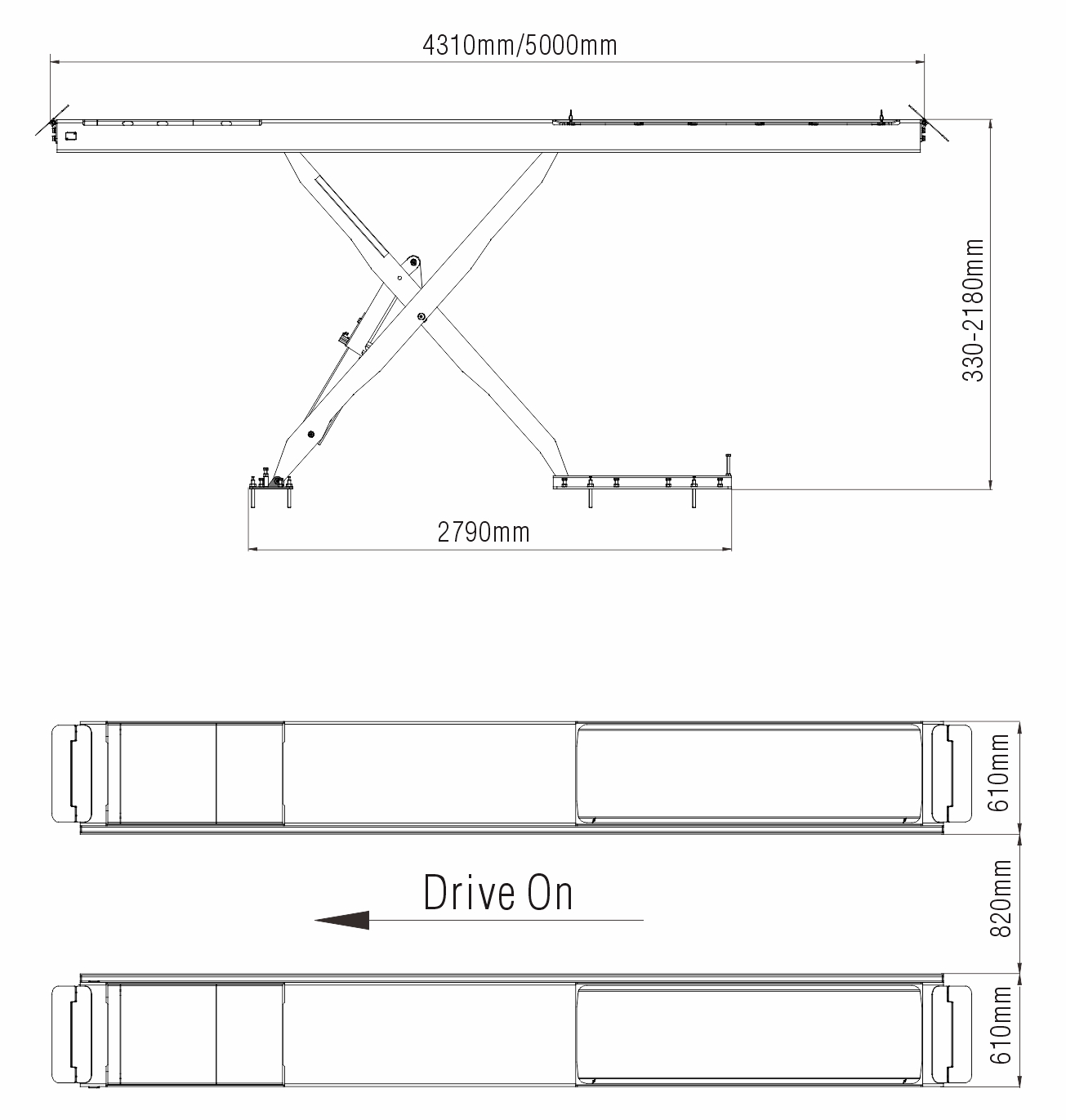

Platform Length |
4310mm |
5000mm |
|
Platform Width |
610mm |
610mm |
|
Distance between Platforms |
820mm |
820mm |
|
Power Supply |
220V/50Hz/1Ph 380V/50Hz/3Ph |
220V/50Hz/1Ph 380V/50Hz/3Ph |
|
Air Supply |
6-8kg/m³ |
6-8kg/m³ |
|
Lifting/Lowering Time |
Less than 60S |
Less than 60S |
|
Motor Power |
2.2kW |
3.0kW |
