  • HC8610

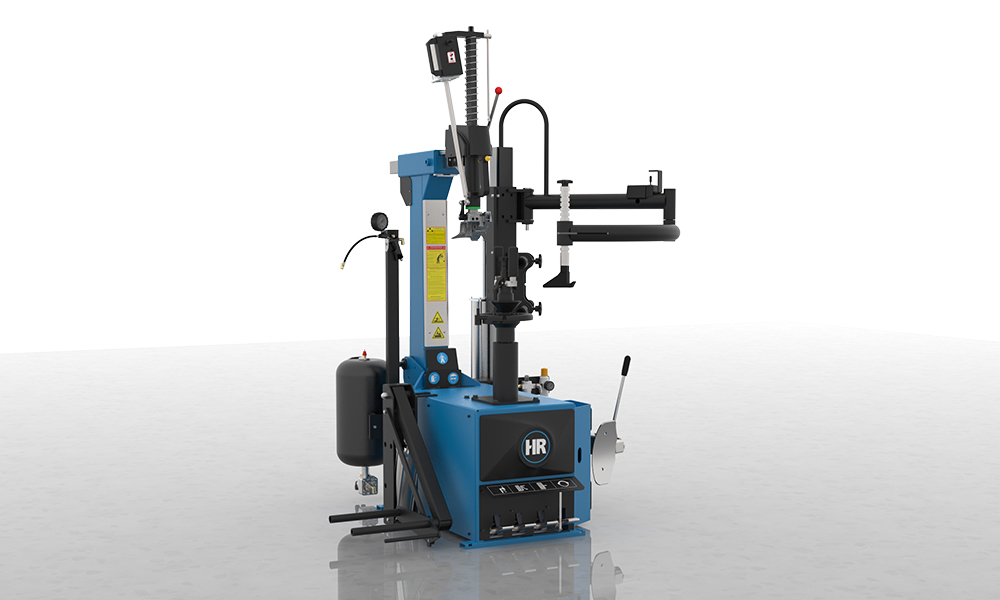

HC8610(IT) | Automatic Center Clamp Tilt Column Tyre Changer with Tire Lifter, Leverless Tool Head and Right Helper Arm
♦ Quick fit center wheel clamping eliminates rim edge damage and provides positive center hole clamping using a cone and quick nut with pneumatic locking.
♦ Variable Speed pedal operated rotation allows you to select the appropriate speed for different type tyres.
♦ Simultaneous pneumatic locking of the horizontal and vertical arms with automatic positioning of the head in the optimal work position.
♦ The innovative leverless tool head eliminates the need for traditional type levers, reducing the risk of damage to tyres and rims while saving you valuable time and effort.
♦ Extra strong pneumatic tilt back column.
♦ Powerful alu-alloy beadbreaker cylinder with 2800kg beadbreaking force makes quick work of the toughest tires. Side mounted wheel lift to reduce fatigue and minimize back injuries when lifting heavy wheels.
♦ The design of the front backlit plastic decorative cover enhances both attractiveness and a technological aesthetic.
♦ DP80 right helper arm: The Assist Arm offers super-fast tyre removal and installation with its variable speed functionality. Whether you're working on passenger cars, SUVs, or light trucks, this assist arm provides the power and precision you need to handle a wide range of tyre sizes and profiles.

Technical Data Details Overall Dimension Optional parts

Rim Clamping Outside

12"~26"

Max. Wheel Diameter

1100mm

Max. Wheel Width

3"~14"

Beadbreaking Force

2800kg

Operation Pressure

8~10 bar

Motor Power

0.85kW

Power Supply

200-240V/50Hz/60Hz/1Ph
